Customized Shape ESD Conductive PU Foam Sheets with 2-500mm Thickness and 10^3-10^6 Ω Surface Resistance for Electronic Component Packing
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Thượng Hải, Trung Quốc |
| Hàng hiệu: | HERZESD |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 500 |
|---|---|
| Giá bán: | $15-20 |
|
Thông tin chi tiết |
|||
| Vật liệu: | xốp PU | Màu sắc: | Đen |
|---|---|---|---|
| Độ dày: | 2-500mm | Bề mặt điện trở: | 10^3-10^6 Ω |
| Điện trở khối lượng: | 10^3-10^6 Ωcm | Tỉ trọng: | 25-27Kg/m3 |
| Mô hình dẫn điện: | HZ-1203A | Mô hình bán dẫn: | HZ-1203S |
| Mô hình tiêu tan: | HZ-1203D | Màu dẫn điện: | Đen |
| Màu bán dẫn: | Đen | Màu tiêu tan: | Đen/Màu hồng |
| Điện trở suất bề mặt dẫn điện: | 10^3-10^6Ω | Điện trở suất bề mặt bán dẫn: | 10^6-10^9 Ω |
| Điện trở bề mặt tiêu tán: | 10^9-10^11 Ω | ||
| Làm nổi bật: | 2-500mm Thickness ESD Foam Sheets,10^3-10^6 Ω Surface Resistance PU Foam,25-27Kg/m3 Density Conductive Foam Sheets |
||
Mô tả sản phẩm

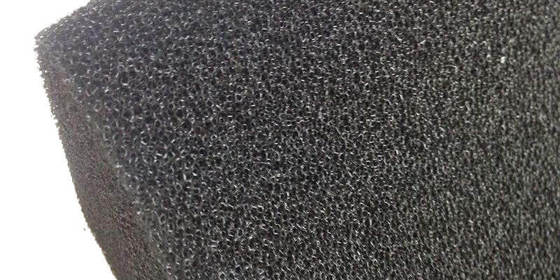

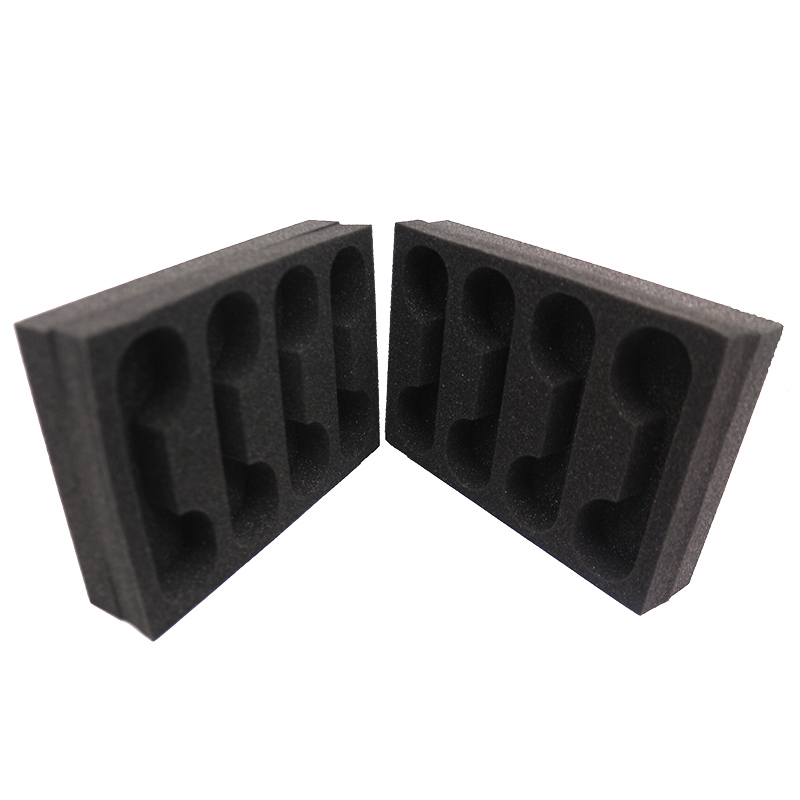

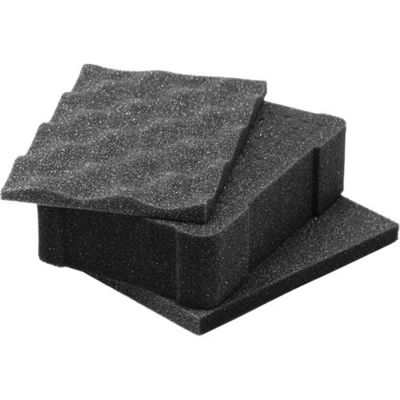

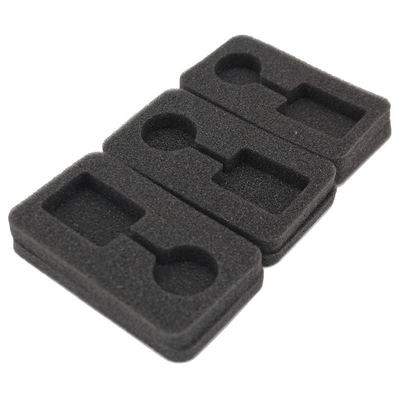

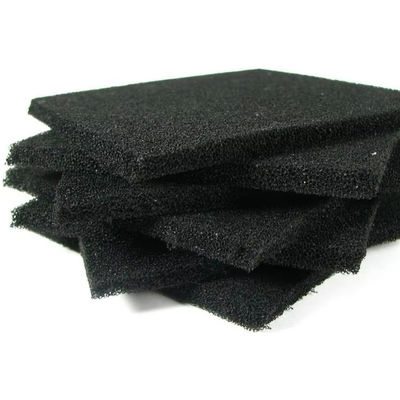

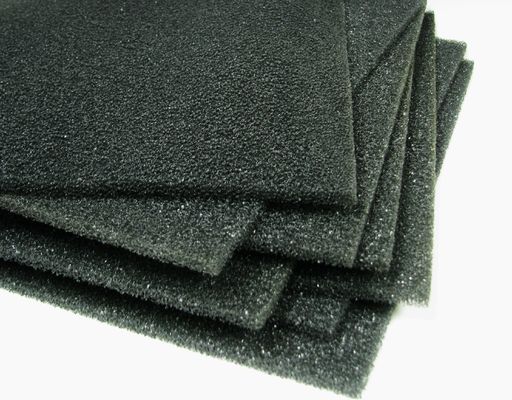

Customized Shape ESD Conductive/Antistatic PU Foam Sheets for Electronic Component Packing
Technical Specifications
| Items | Conductive | Semi-conductive | Dissipative |
|---|---|---|---|
| Model | HZ-1203A | HZ-1203S | HZ-1203D |
| Color | Black | Black | Black/Pink |
| Density | 25-27Kg/m³ | ||
| Surface Resistivity | 10³-10⁶Ω | 10⁶-10⁹Ω | 10⁹-10¹¹Ω |
| Volume Resistivity | 10³-10⁶Ω.cm | 10⁶-10⁹Ω.cm | 10⁹-10¹¹Ω.cm |
Product Advantages
High Quality ESD Single Side Glued Polyurethane Anti-static PU Foam provides optimal protection for electronic products ranging from computers to automotive parts. It offers superior cushioning while effectively eliminating and absorbing electrical charges, vibrations, and electro-shock static to prevent internal damage during shipping and handling.
Why ESD Protection is Essential for Your Production Line
Electronic components and assemblies vulnerable to electrostatic discharges (ESD) can be destroyed when exposed to current or impact energy beyond their tolerance levels. These sensitive elements, primarily semi-conducting components and thick/thin-film construction elements, are often damaged through human handling. Humans can accumulate several thousand volts simply by walking, with discharges perceptible at 2000-3000V - already exceeding many components' tolerance levels.
Before implementing ESD-safe products, establish an ESD-safe procedure following ESD standards IEC 61340 or ANSI S2020. These standards form the foundation of ESD preventive protection and quality assurance.
Why Choose HerzESD
HerzESD is committed to providing accurate information and optimal ESD solutions, even when it means challenging established but potentially flawed market opinions. We pride ourselves on delivering only correct ESD solutions through reliable manufacturing partnerships, continuously improving our offerings to better control static electricity in industrial applications.
